Labels for
Direct Hot Application

Heat Resistant Labels can be applied directly on to hot aluminum and steel products early in the production process. Products can be accurately identified and verified in down stream processes using barcode scanners.


Lineup

HP-350N

  • Application temperature up to 400℃
  • Maximum heat resistance to 600℃.
  • Excellent ink stability and resistance to ink smudging when applying at high temperatures

HP-600

  • Application temperature from 250℃ to 600℃
  • Maximum heat resistance to 600℃.
  • Heat activated adhesive

HP-700T

  • Application temperature from 450℃ to 800℃
  • Heat resistance up to 800℃
  • Heat activated adhesive

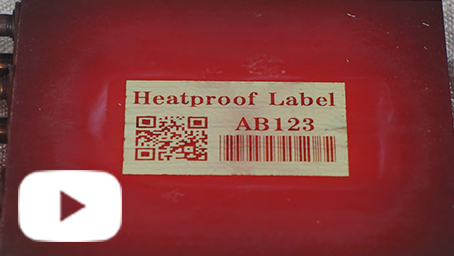

HP-900

  • Application temperature from 450℃ to 900℃
  • Maximum heat resistance to 900℃.
  • Heat activated adhesive

How Direct Hot Application Works

Unique adhesives are heat activated by hot direct application up to 900℃

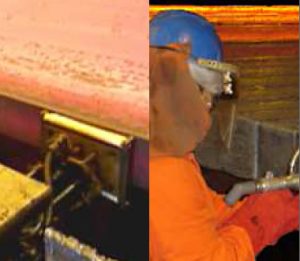

Specialty applicator tool is necessary for hot application.


Applications

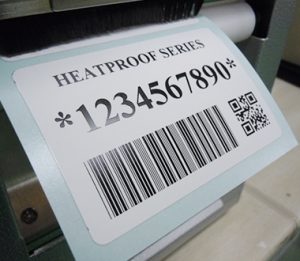

Thermal transfer printers can be used with dedicated printers or integrated into existing production systems. Products can also be identified in the field using mobile printers. Include information such as weight, batch number, production date, or chemistry. Labels can include desired barcode symbology such as 1D, 2D, or QR codes. Improve product identification with the use of barcode scanners.

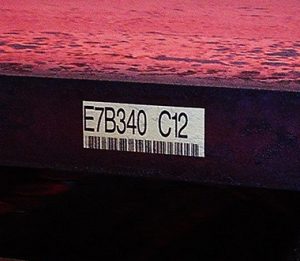

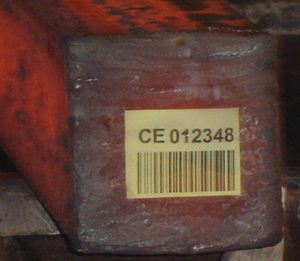

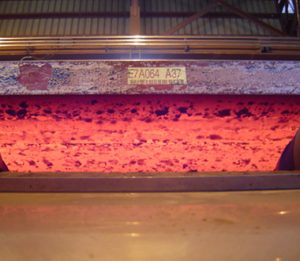

Installation example

Steel products

Application temp : 800℃
Label : HP-700T

Steel products

Application temp : 550℃
Label : HP-600

Steel products

Application temp : 750℃
Label : HP-700T

Steel products

Application temp : 800℃
Label : HP-700T

Aluminum products

Application temp : 500℃
Label : HP-600
