Steel Industry |

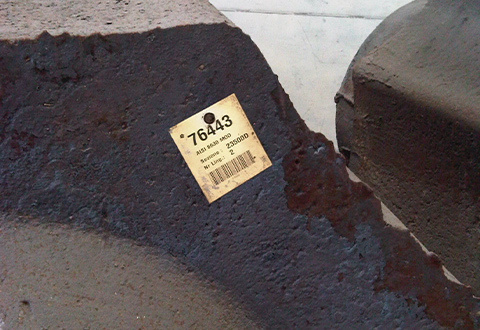

Case Study: Management of forged products through
heat treatments using HEATPROOF tags
![](/resource/hp_img_case/case_steel/05/main_image.jpg)
Object | Steel Forged product |
Steel industry | Attach tag at temperatures from room temperature to 800℃ →Heat treatment ( 1100℃ x 18hours ) |
Case5 | HEATPROOF HP-L90 |
Customer’s request
- Improve product tracking
- Eliminate misidentification of products
![](/resource/hp_img_common/ico_voice.png)
Initial Process Management
Marking by hand with heat resistant chalk
![](/resource/hp_img_case/case_steel/05/management_01.jpg)
Hand writing on forged products using heat resistant chalk
Hand marking with heat resistant chalk
![](/resource/hp_img_case/case_steel/05/management_02.jpg)
Forged product is produced but may require additional forging processes
Hand marking with heat resistant chalk
![](/resource/hp_img_case/case_steel/05/management_03.jpg)
Marking can be lost on final product after cutting work
Process Issues
- Marking is necessary after each heat treatment
- Product is incorrectly identified or hand writing is difficult to read. This leads to identification errors.
![](/resource/hp_img_case/case_steel/05/problem_01.jpg)
Heat treatment cycles may cause the hand
written mark to be illegible.
![](/resource/hp_img_case/case_steel/05/problem_02.jpg)
Product misidentification can easily occur
HEATPROOF Solution
![](/resource/hp_img_case/case_steel/01/solution_balloon_01.png)
1 | Provide product identification which will survive all processes. |
2 | Eliminate identification errors |
3 | Utilize barcode scanners to verify product identification and eliminate human reading errors. |
![](/resource/hp_img_case/case_steel/05/solution_01.jpg)
HP-L90 tags can be stud welded, spot welded, or nailed to steel products for heat treatments or repeated forging
![](/resource/hp_img_case/case_steel/05/solution_02.jpg)
Completion of half-Finish products
HP-L90 tag survives multiple reheat cycles avoiding the need to re-identify products
→ Remarking is not necessary.
→Accurate product tracking through
complete process by using HP-L90 tag with scanable barcodes
![](/resource/hp_img_case/case_steel/05/solution_03.jpg)
Final product after cutting work
→HP Tag is detached at final process.
