Steel Industry |
Case Study: Direct application on hot steel coil
using robotic labeler system
![](/resource/hp_img_case/case_steel/02/main_image.jpg)

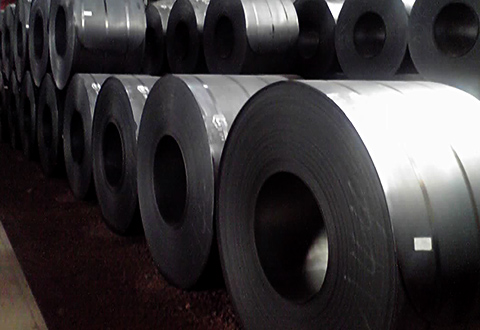

Object | Steel Hot Coil |
Application Temperature | 550℃ |
Products | HEATPROOF HP-600 |
Customer’s request
- Identify and barcode hot coils soon after rolling
- Include coil characteristics and shipping information
- Eliminate coil identification and shipping errors
![](/resource/hp_img_common/ico_voice.png)
Initial Process Management
Visual inspection of Spray marking
![](/resource/hp_img_case/case_steel/02/management_01.jpg)
Spray marking at 550℃
Shipping label is applied after coil has cooled
![](/resource/hp_img_case/case_steel/02/management_02.jpg)
Coil number is visually checked in coil inventory yard. Label is printed and applied on cool coil.
Process Issues
- Hot coil management using barcode identification is difficult
- Incorrect label is applied after coil has cooled, causing misidentified products.
- Coil must be re-identified down stream. This is not efficient
HEATPROOF Solution
![](/resource/hp_img_case/case_steel/01/solution_balloon_01.png)
1 | Improvement of coil identification using barcodes and scanners. |
2 | Elimination of inefficient processes such as coil re-identification. |
3 | Reduce coil marking costs. Streamline inventory reconciliation. |
![](/resource/hp_img_case/case_steel/02/solution_01.jpg)

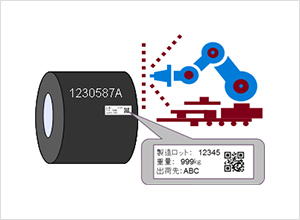

HEATPROOF label applied in process at 550℃
4 | Eliminate the need to re-identify coils after cooling |
![](/resource/hp_img_case/case_steel/02/solution_02.jpg)

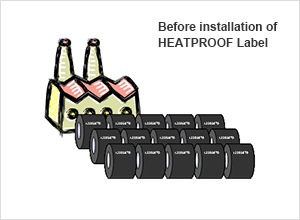

Spray marked coils must be re-labelled after cooling
![](/resource/hp_img_case/case_steel/02/solution_03.jpg)

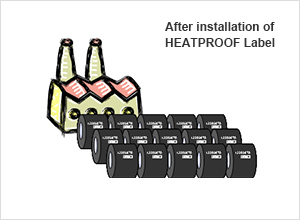

HEATPROOF labels are applied as soon as the coil is produced
![](/resource/hp_img_case/case_steel/02/solution_04.jpg)

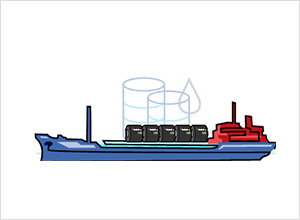

Improved shipping accuracy and lead time
